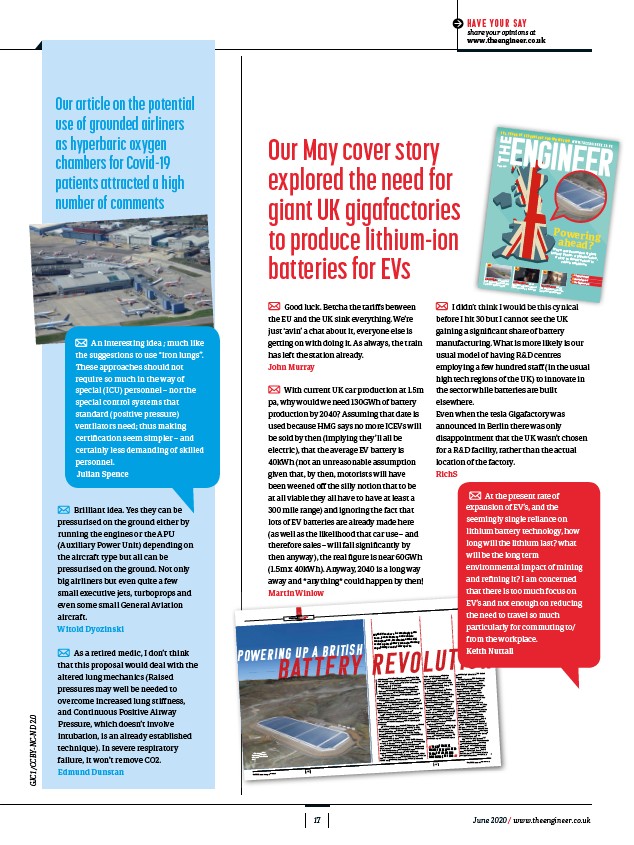

HAVE YOUR SAY
share your opinions at
www.theengineer.co.uk
Our May cover story
explored the need for
giant UK gigafactories
to produce lithium-ion
batteries for EVs
164 YEARS OF TECHNOLOGY AND INNOVATION
Powering
ahead?
Why a new generation of giant
battery plants, or gigafactories,
are key to the UK’s electric
vehicle ambitions
TheEngineerUK
theengineeruk
The Engineer UK
MAY 2020
20 34 24
LATE GREAT ENGINEERS: The life
and achievements of Archimedes -
Antiquity’s greatest engineer
civil engineering: A flood defence
plan for hull promises to deliver
a tripple whammy of benefits
consumer technology: How an
innovative loudspeaker technology
harnesses the power of graphene
001_TE_MAY20_Cover ideas.indd 1 27/04/2020 16:40
COVER featurebatteries
Powering up a British
At the present rate of
expansion of EV’s, and the
seemingly single reliance on
lithium ba ery technology, how
long will the lithium last? what
will be the long term
environmental impact of mining
and refi ning it? I am concerned
that there is too much focus on
EV’s and not enough on reducing
the need to travel so much
particularly for commuting to/
from the workplace.
Keith Nu all
battery revolution
the political and industrial will to make it
by the scale of the planned pipeline
elsewhere in Europe. For example,
Chinese fi rm CATL - one of the world’s
largest providers of EV ba eries - hopes
to reach 60GWh at its main German site
by the middle of the decade.
happen?
Faraday Institution CEO Neil Morris is
relatively optimistic about the prospect,
and told The Engineer that whilst the
clock is defi nitely ticking, a combination
of existing expertise and government
support make the UK an a ractive
destination for ba ery investment.
In a recent report, the UK’s Faraday
Institution (a £78m initiative set up
through the government’s £274m Faraday
Challenge fund to drive developments
in ba ery technology) warns that a
failure to scale up could have disastrous
consequences for the UK car industry.
The fear is that as vehicle producers
switch to producing greater volumes of
electric vehicles, and wind down internal
combustion engine production, the high
cost of importing ba eries (which can
account for around 40 per cent of the
value of an EV) will erode the commercial
case for making cars here.
17 June 2020 / www.theengineer.co.uk
Our article on the potential
use of grounded airliners
as hyperbaric oxygen
chambers for Covid-19
patients attracted a high
number of comments
Brilliant idea. Yes they can be
pressurised on the ground either by
running the engines or the APU
(Auxiliary Power Unit) depending on
the aircraft type but all can be
pressurised on the ground. Not only
big airliners but even quite a few
small executive jets, turboprops and
even some small General Aviation
aircraft.
Witold Dyozinski
As a retired medic, I don’t think
that this proposal would deal with the
altered lung mechanics (Raised
pressures may well be needed to
overcome increased lung stiff ness,
and Continuous Positive Airway
Pressure, which doesn’t involve
intubation, is an already established
technique). In severe respiratory
failure, it won’t remove CO2.
Edmund Dunstan
Good luck. Betcha the tariff s between
the EU and the UK sink everything. We’re
just ‘avin’ a chat about it, everyone else is
ge ing on with doing it. As always, the train
has left the station already.
John Murray
With current UK car production at 1.5m
pa, why would we need 130GWh of ba ery
production by 2040? Assuming that date is
used because HMG says no more ICEVs will
be sold by then (implying they’ll all be
electric), that the average EV ba ery is
40kWh (not an unreasonable assumption
given that, by then, motorists will have
been weened off the silly notion that to be
at all viable they all have to have at least a
300 mile range) and ignoring the fact that
lots of EV ba eries are already made here
(as well as the likelihood that car use – and
therefore sales – will fall signifi cantly by
then anyway), the real fi gure is near 60GWh
(1.5m x 40kWh). Anyway, 2040 is a long way
away and *anything* could happen by then!
Martin Winlow
I didn’t think I would be this cynical
before I hit 30 but I cannot see the UK
gaining a signifi cant share of ba ery
manufacturing. What is more likely is our
usual model of having R&D centres
employing a few hundred staff (in the usual
high tech regions of the UK) to innovate in
the sector while ba eries are built
elsewhere.
Even when the tesla Gigafactory was
announced in Berlin there was only
disappointment that the UK wasn’t chosen
for a R&D facility, rather than the actual
location of the factory.
RichS
Artist’s impression of
Gigafactory1, Tesla’s giant
battery plant in the Nevada
desert
Ma 2020 /www.theengineer.co.uk 12
012_TE_MAY20_Cover Feature.indd 12 24/04/2020 16:04
May 2020/ www.theengineer.co.uk 13
With EV makers increasingly keen
to co-locate ba
ery and vehicle
manufacture, its vital that the UK
scales up its ba
ery manufacturing
capability. Jon Excell reports.
In the desert just outside of Reno, Nevada, stands a building
that, seen from above, dominates the otherwise featureless
landscape and – in terms of its footprint – dwarfs pre y much
any other building on the planet.
This is Tesla’s Gigafactory 1, a vast lithium ion ba ery
factory set up to satisfy the fi rm’s sky-rocketing domestic
demand for electric vehicle (EV) ba eries and, through
economies of scale, fulfi l its vision to bring aff ordable electric
motoring to the masses.
When complete the facility is expected to have an annual
ba ery production capacity of 150GWh per year, enough for 1.5
million cars. Add this impressive boast to the Tesla CEO’s famed
knack for generating publicity, and it’s no surprise that the
plant has a racted a fair amount of international a ention. But
Gigafactory1 is by no means the only show in town.
Indeed, around the world, in a bid to drive down costs and
simplify supply chains, ba ery manufacturers and car makers
are in a fevered race to establish similarly vast facilities to
produce the cells, modules and packs that will power the EV
revolution.
Whilst Asia remains the stronghold (China alone is projected
to hit 800GWh of annual manufacturing capacity by 2025)
Europe is expanding rapidly. Based on current plans - which
include the construction of facilities in Germany, Sweden,
Poland and Hungary - continental Europe will have 450GWh /
year of production by the end of the decade.
But to the growing of concern of many in the UK, there are
currently no fi rm plans for this country to follow suit: something
of a surprise given its growing EV manufacturing base and
historic expertise in the fi eld (the lithium ba ery was invented
in Oxford and the ba ery plant alongside Nissan’s Sunderland
car factory was once the fi rst of its kind in the Europe).
To give a sense of how rapidly things have moved on, whilst
that same plant (now owned by Chinese fi rm Envision) remains
the UK’s largest facility, its annual 2GWh capacity is dwarfed
To avert this scenario, and tap into the
huge opportunity presented by the UK’s
growing EV market, the group claims
that the UK will need to build at least
seven 20GWh gigafactories by 2040. The
question is: can it be done, and is there
to meet domestic
demand the UK will need
to build at least seven
gigagfactories by 2040
Perhaps the most obvious of these
a ractions is the UK’s current position
as Europe’s fourth largest vehicle
manufacturer. And whilst failure to
invest in ba ery scale up could see it drop
down the rankings, Morris believes that
the existing base is a ractive to investors
keen to tap into ready markets for their
technology. “One of the key criteria
ba ery manufacturers look to when
placing a ba ery factory is proximity to
car manufacturing,” he said. He added
that the UK’s aforementioned historical
pedigree - though in many senses an all
too familiar tale of missed opportunities –
is also a positive that has created a legacy
of skilled workers and facilities that off er
a strong platform to build on.
What’s more, whilst it may not yet
have a Gigafactory the UK does have some
existing and planned manufacturing
capability. As well as the Sunderland
Envision site, a new ba ery assembly
centre at Jaguar Land Rover’s Hams
Hall site, that will produce units for its
next generation of electric vehicles, is
012_TE_MAY20_Cover Feature.indd 13 24/04/2020 16:04
An interesting idea ; much like
the suggestions to use “iron lungs”.
These approaches should not
require so much in the way of
special (ICU) personnel – nor the
special control systems that
standard (positive pressure)
ventilators need; thus making
certifi cation seem simpler – and
certainly less demanding of skilled
personnel.
Julian Spence
